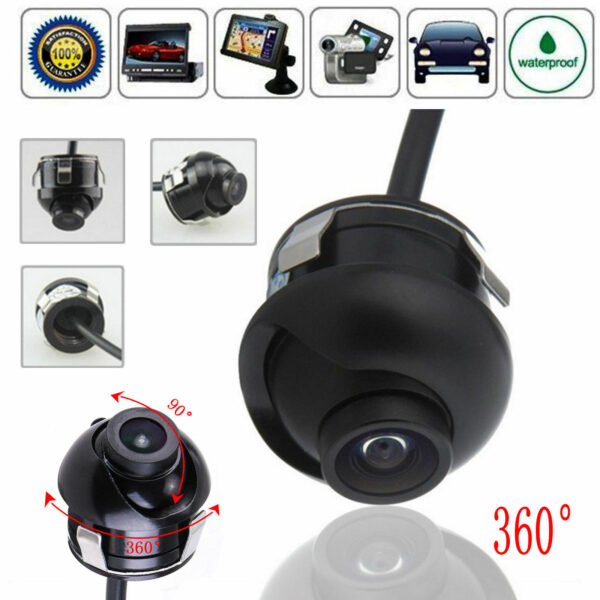

CAMERA FOLD IN 2 IN 1 FRONT/REAR CCD 170°

65.02$

7 in stock

SKU: CAM-HD-FI Categories: , , , , , , ,

Description

This camera has both rear and front view

This camera is a drill in camera , it folds into the hole drilled.

Use it for front view / rear view  or side view , select if you want guide lines or not.



Specifications

  • Image Sensor:HD Sony CCD
  • TV system: NTSC
  • Horizontal Resolution: 480 TV lines
  • Effective Pixels: PAL: 628(H) x 582(V) NTSC:510(H) x 492(V)
  • Lens: 18.5mm
  • View Angle: 170 degree
  • S/N Ratio: >48dB
  • Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
  • Video Output: 1.0Vpp, 75Ohm
  • White Balance: Auto
  • Power: DC 12V
  • Water-proof: IP67~IP68
  • Video Cable Length: 6m
  • Power Supply Cable Length: 1.5m


Notes:
1. The mirror image control line is designed to switch the front view to rear view.
2. Cut green cable: Cancel Parking Lines.
3. Cut white cable: Switch mirror(rear view) to normal image(front view).
